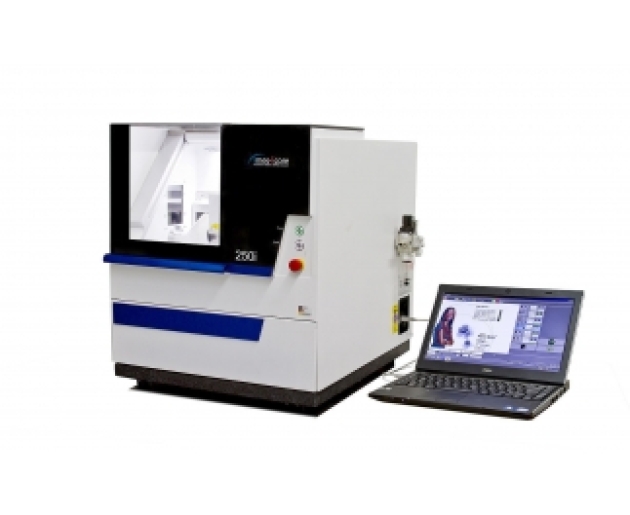

Máy cắt Coritec 250i

Name: Máy cắt Coritec 250i
Brand: THIẾT BỊ MÁY CẮT
SKU: SP045
Availability: InStock
Rating: 4.4 (89 reviews)

Rigid, industrial, heavy duty steel-aluminum table top design
Lifting closed aluminum door with an integrated security circuit
5-Axis processing, NC-controlled (simultaneous or 3+2)
Easiest connection and using with CAM software
Micro-Step-Controller and motors on all axis with look ahead path generator
Material holder for blanks (98 mm) with NC-controlled automatic 360 degree axis and real 4-axis-processing
Rotation axis with Harmonic Drive gears for high stability and precision in 4. / 5. axis
HF-spindle with up to 60.000 rpm
Cooling vent integrated into spindle holder
Integrated water cooling / filtering system for dry and wet processing (grinding and milling)
Suction adapter for optimized absorbing
Automatic 10-time direct tool-changer
Using tools with 3 mm shaft
Integrated tool length measurement sensor with up to 2µm
Control – PC, with NC control software “REMOTE”
Automatic air pressure control
115 V/230 V-versions
Compressed air consumption app. 50 l/min (min. 7 bar)
Weight: 188 lbs.
Dimensions: 27 in. x 22 in. x 21 in. (L x H x W)
