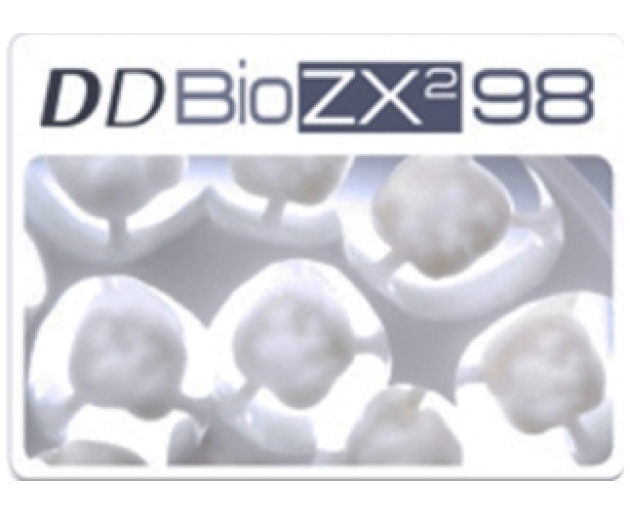

DD Bio ZX²98 high translucent zirconia

DD Bio ZX²98 high translucent zirconia

  • Liên hệ
  • 391

Through the development of this innovative material, we have combined all the well-known, positive mechanical properties of “white“ zirconia with an obvious increase in translucence. The DD Bio ZX² concept convinces with its cost effectiveness and also offers all the advantages of full-ceramic zirconia dentures.

Through the development of this innovative material, we have combined all the well-known, positive mechanical properties of “white“ zirconia with an obvious increase in translucence. The DD Bio ZX² concept convinces with its cost effectiveness and also offers all the advantages of full-ceramic zirconia dentures.

Physical properties:


Characteristics Unit Value
Density (after sintering) g/cm³ > 6,0
Coeff. of thermal exp. (25-500°C) 10-6K-1 10,5
Fracture toughness MPa*m1/2 > 6
Bending strenth (4-point) MPa 1200 (+/- 200)
E-module GPa > 200
Open porosity % 0

Chemical composition:




ZrO2 + HfO2 +Y203 > 99%
Al2O3 <0,5 %
other oxides <0,25 %

Product names marked with * are registered trademarks of the manufacturer

DD Bio ZX²98 for open systems and Wieland Zeno®* Tec
bio zx

DD Bio ZX² 98 (with Step)

high translucent zirconia, pre sintered. particularly suitable for full contours

Order no. Dimensions
G 590 98,5 x 10 mm
G 591 98,5 x 12 mm
G 592 98,5 x 14 mm
G 593 98,5 x 16 mm
G 594 98,5 x 18 mm
G 595 98,5 x 20 mm
G 596 98,5 x 25 mm
bio zx os

DD Bio ZX² 98 (without step)

high translucent zirconia, pre sintered. particularly suitable for full contours

Order no. Dimensions
G 590 98,5 x 10 mm
G 592.2 98,5 x 14 mm
G 594.2 98,5 x 18 mm
G 595.2 98,5 x 20 mm
G 596.2 98,5 x 25 mm
